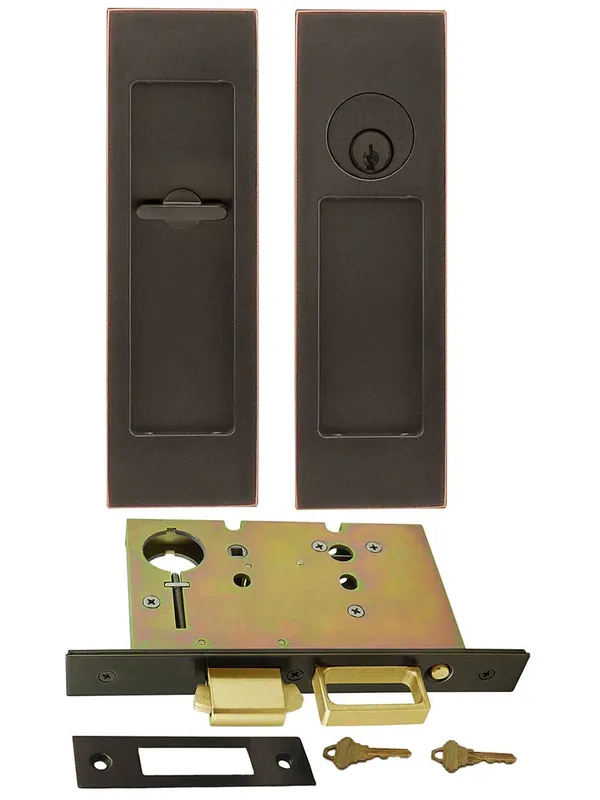

Understated yet well define, our Premium Keyed Pocket-Door Mortise Lock Set is an excellent choice for a variety of interiors. Beautifully designed and crafted, it features a convenient spring-loaded edge pull for quiet, smooth operation. The depth-adjustable strike makes it easier to install, while self-retractable wing hooks on the latch prevent scratches to the opposite surface. For a complete double pocket-door set, combine this locking set with our matching dummy set. Choose from a wide assortment of lustrous finishes.
The lock is activated from outside by a standard key and from inside by the thumb-turn. When locked, the latch bolt is held in place by the included strike or dummy mortise case (for double doors – purchase separately).
Dimensions: 7 7/8″ H x 2 23/64″ W x 5/64″ thick. Mortise: 23/64″ deep. Lock case: 3 21/32″ D x 6″ H x 11/16″ W. Faceplate: 8″ H x 1″ W. Backset: 2 3/4″. Standard Door Thickness: 1 3/4″. Thick door kits and other backsets available, call for details. The screw holes for attaching are concealed on the sides of the recess.
NOTE: Not all visible parts of lock will match the finish of the set. For Oil-Rubbed Bronze and Aged Brass sets, the spring loaded edge pull and push button will be in Satin Nickel finish.
