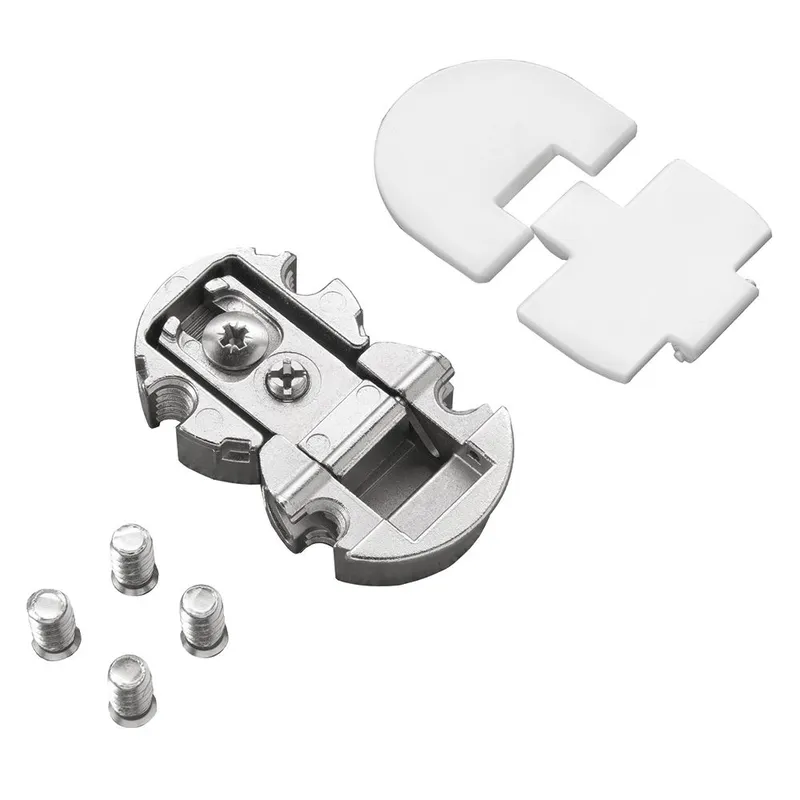

Salice’s Pacta is a compact hinges for fall flaps which operates without the need for additional stays or cables. Decelerated opening action so the fall of the door is gradual and controlled.

Pacta is a compact hinge for fall flaps which operates without the need for additional stays or cables.

• Decelerated opening action so the fall of the door is gradual and controlled
• In the fully-open position, the door and base panel are aligned, creating a uniform and flat surface
• Minimum door height 11″ (279mm)
• Maximum door height 16″ (406mm)
• Minimum door thickness 5/8″ (16mm)
• Maximum door thickness 1-3/32″ (28mm)
• Center hinge required for doors 30″ or wider
• Standard 35mm drilling on the door
• Bottom overlay of 17mm (fixed)
• Cup depth of 13mm, boring distance 4.5mm
• Smove = decelerating strength
• 55 pound load rating
• 90° opening angle

• PACTA-Installation-Instructions.pdf

Product Specifications
