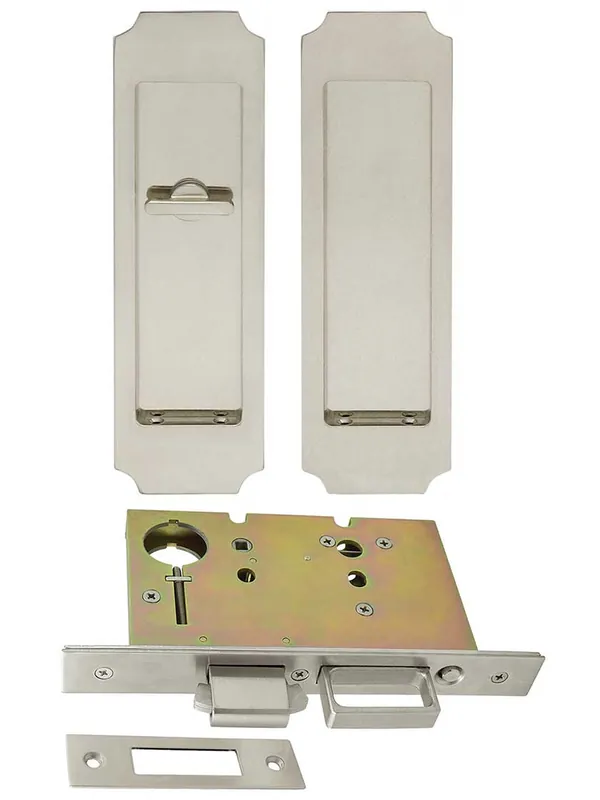

“Refined simplicity” defines the timeless style and charm of our Premium Patio Pocket-Door Mortise Lock Set with Chamfered Corner Pulls. Beautifully designed and crafted, it features a convenient spring-loaded edge pull for quiet, smooth operation. The depth-adjustable strike makes it easier to install, while self-retractable wing hooks on the latch prevent scratches to the opposite surface. For a complete double pocket door set, combine this locking set with our matching dummy set. Choose from a wide assortment of lustrous finishes.
The lock is activated from the inside by the bow-shaped thumb turn. The latch bolt is held in place by the included strike or dummy mortise case (for double doors – purchase separately).
Dimensions: Pulls – Outer: 7 7/8″ H x 2 23/64″ W (200mm x 60mm). Recess: 6 23/64″ H x 1 31/32″ W. Mortise Depth: 23/64″ (9mm). Surface plate: 5/64″ (2mm) thickness.
Backset: 2 3/4″. Standard Door Thickness: 1 3/4″. Thick door kits and other backsets available, call for details. Lock Case: 6″ H x 3 21/32″ W x 11/16″ Thick (152 x 93 x 17mm). Faceplate: 8″ H x 1″ W x 3/32″ (2mm) Thick. Vertically Adjustable Strike: 3 1/2″ H x 1″ W x 1 3/32″ depth.
NOTE: Not all visible parts of lock will match the finish of the set. For Oil-Rubbed Bronze, Aged Brass and Polished Brass sets, the spring loaded edge pull and push button will be in Satin Nickel finish.
